ASUS PRIME GeForce RTX 5070 Ti 16GB GDDR7 OC Edition

The ASUS PRIME GeForce RTX 5070 Ti 16GB OC Edition combines cutting-edge NVIDIA Ada architecture with ASUS’s renowned reliability and cooling technology.
Designed for creators and gamers who demand next-level performance, it delivers ultra-smooth gameplay, efficient cooling, and enhanced overclocking potential in a sleek and durable build.

---

Key Features

• Powered by NVIDIA Ada Lovelace Architecture: Brings faster ray tracing, improved DLSS 4 AI upscaling, and superior rendering efficiency.
• 16GB of Next-Gen GDDR7 Memory: Massive bandwidth for 4K gaming, 3D design, and video editing.
• Factory Overclocked Performance: Boost clock up to 2640 MHz for higher frame rates and improved responsiveness.
• Advanced Cooling System: Dual Axial-tech fans with optimized air pressure and ultra-quiet performance.
• Auto-Extreme Technology: Fully automated manufacturing ensures consistent quality and durability.
• Reinforced Backplate: Provides structural rigidity and improved heat dissipation.
• Dual BIOS Mode: Easily switch between quiet and performance profiles based on your preference.
• Comprehensive Software Control: GPU Tweak III gives users complete control over performance tuning, fan curves, and monitoring.
• HDMI 2.1b & DisplayPort 2.1: Future-ready connectivity supporting up to 8K 120Hz and 4K 480Hz displays with DSC.

---

Technical Details

• Graphics Engine: NVIDIA GeForce RTX 5070 Ti
• Model Number: 90YV0MF0-M0NA00
• Architecture: Ada Lovelace
• CUDA Cores: 8,448 Units
• Base Clock: 2310 MHz
• Boost Clock (OC Mode): 2640 MHz
• Memory: 16GB GDDR7
• Memory Interface: 256-bit
• Memory Speed: 30 Gbps
• Bus Standard: PCI Express 5.0
• Digital Max Resolution: 7680 × 4320 (8K Ready)
• Display Outputs:
  • 3 × DisplayPort 2.1
  • 1 × HDMI 2.1b
• HDCP Support: Yes (2.3)
• Maximum Displays Supported: 4
• VR Ready: Yes
• Ray Tracing Cores: 3rd Generation
• Tensor Cores: 4th Generation (DLSS 4 Support)
• G-SYNC® Technology: Supported
• DirectX Support: 12 Ultimate
• OpenGL Support: 4.6

---

Power and Cooling

• Recommended PSU: 750W
• Power Connector: 1 × 16-pin (ATX 3.1 Compatible)
• Power Consumption: 285W (Typical)
• Cooler Design: Dual Fan Cooling
• Fan Type: Axial-tech Fans with Dual Ball Bearings
• Thermal Design: Aluminum Heatsink + Copper Baseplate
• Noise Level: Low-Noise Mode with 0dB Fan Technology

---

Physical Specifications

• Dimensions: 303 × 121 × 49 mm

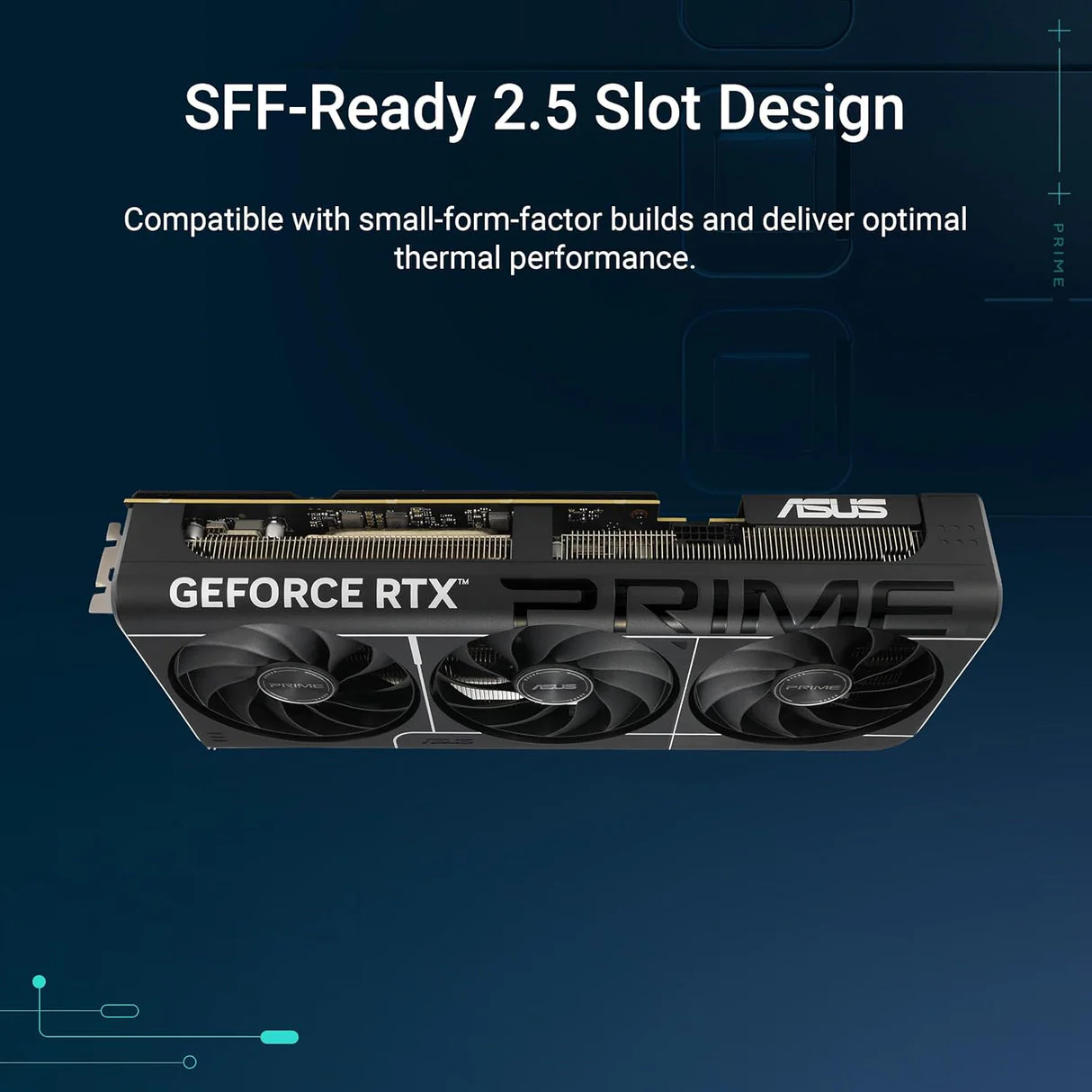

• Slot Size: 2.5 Slots
• Weight: 1.1 kg
• Backplate: Metal Reinforced
• RGB Lighting: Minimalist Aura Sync White Strip

---

Included Items

• ASUS PRIME GeForce RTX 5070 Ti 16GB GDDR7 OC Edition Graphics Card
• Quick Start Guide
• Support Bracket
• 16-pin Power Adapter
• Documentation Pack
